Eastwood English Wheel with Floor Stand

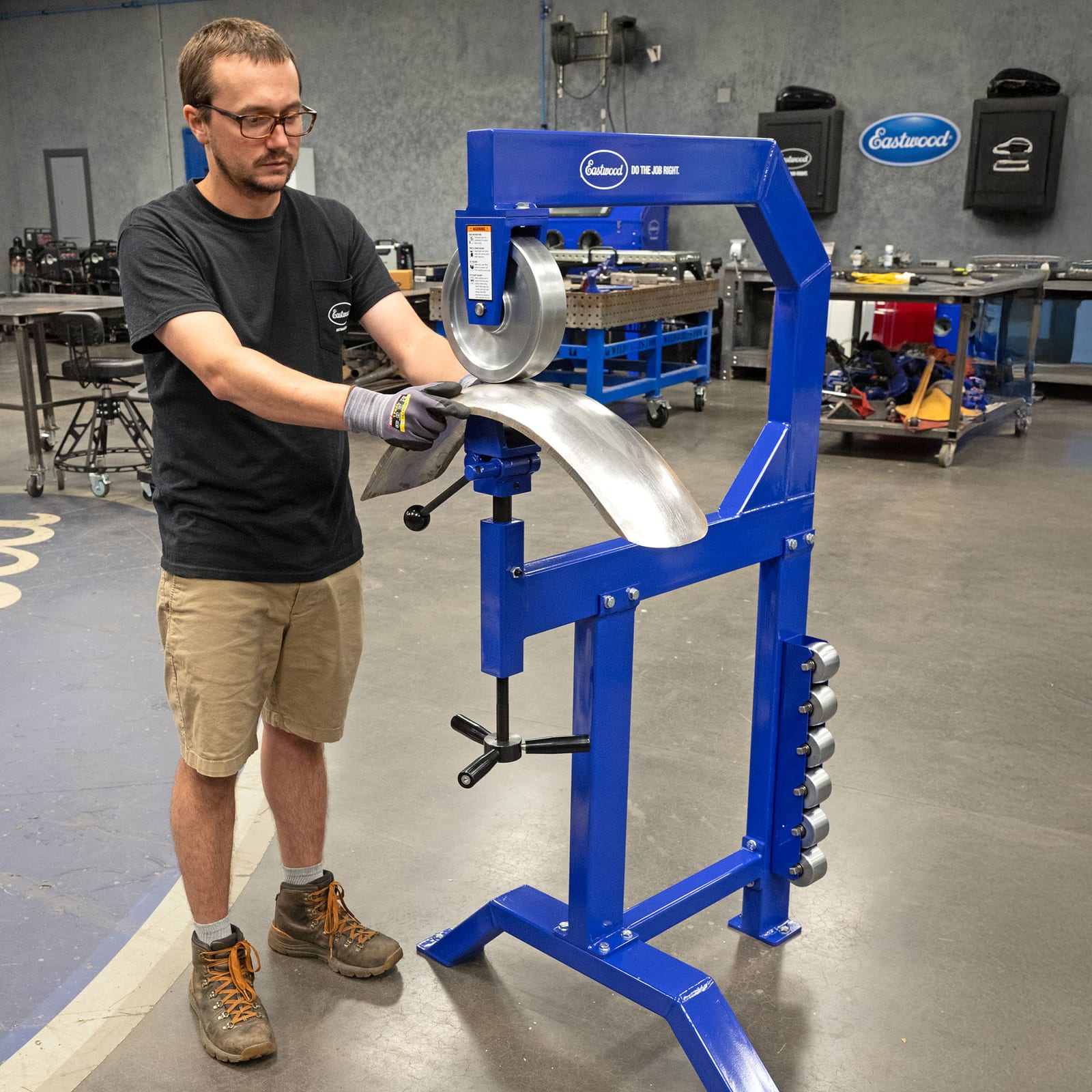

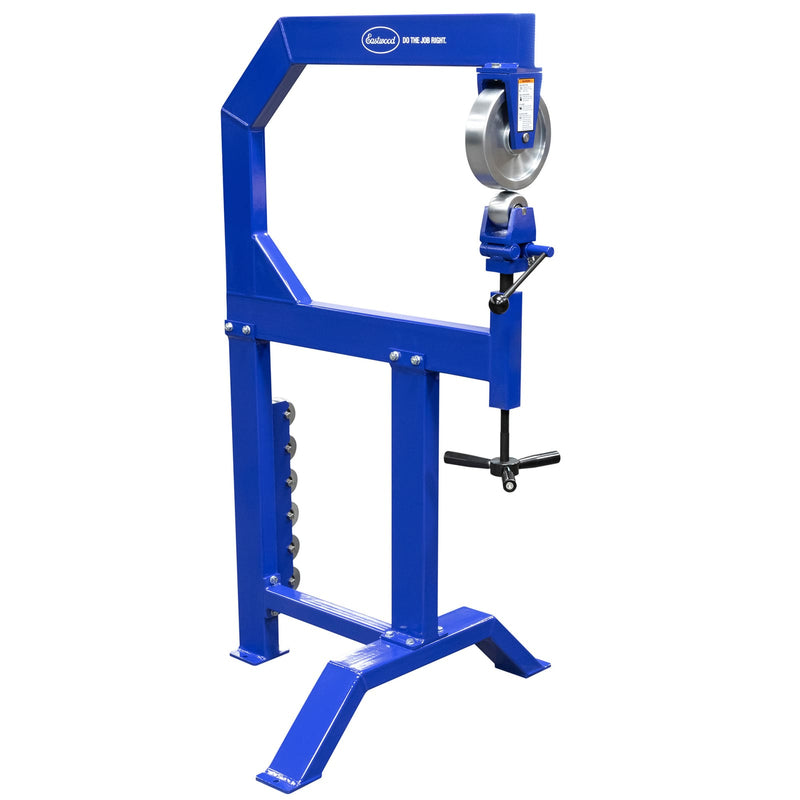

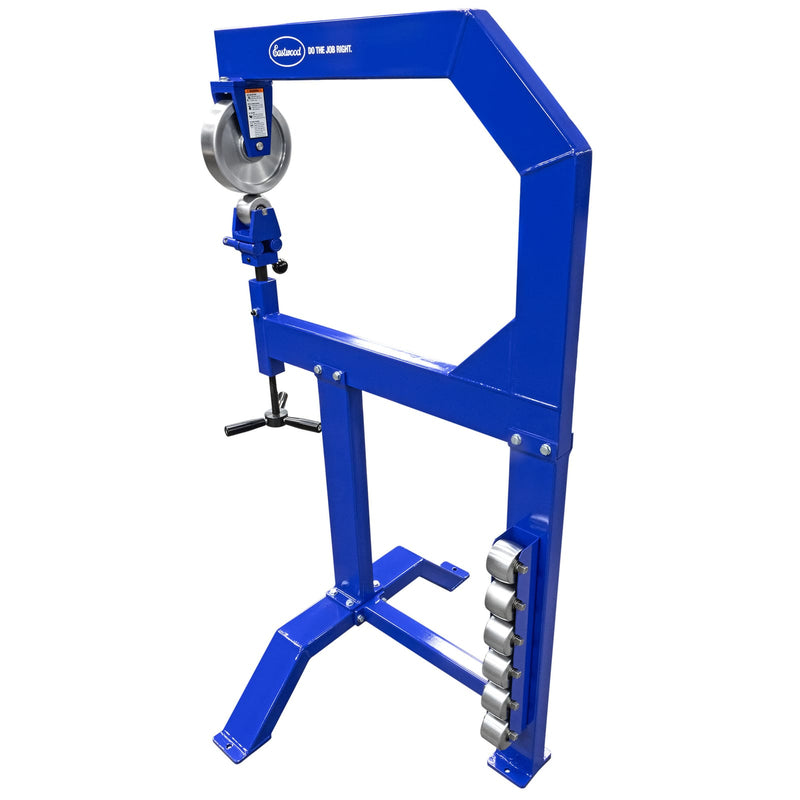

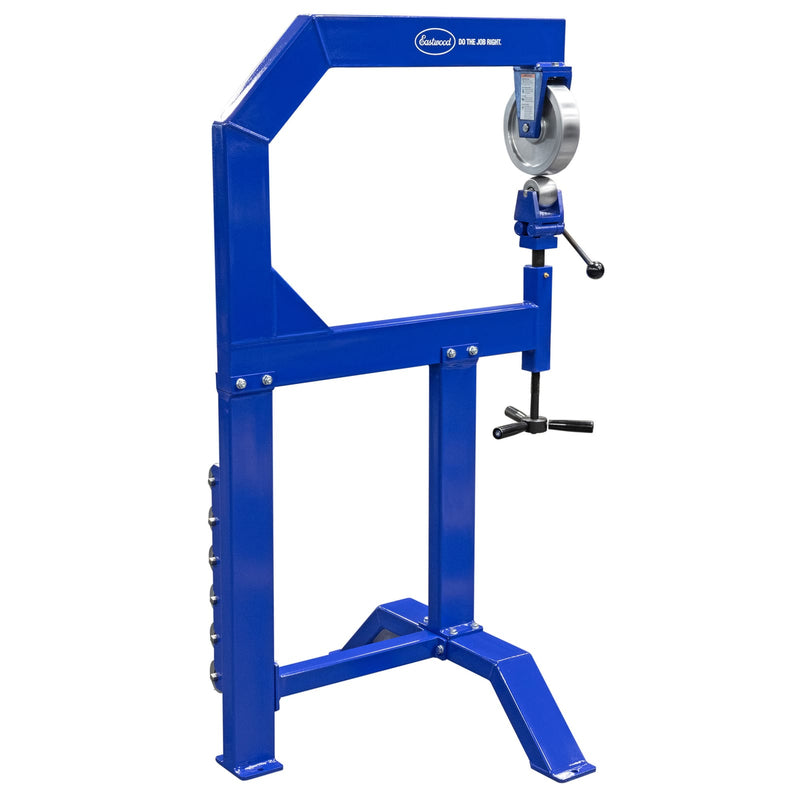

The Eastwood English Wheel with Floor Stand is a metal-forming tool for shaping smooth compound curves in sheet metal. It uses the same wheel and anvil components found in Eastwood's other full-size English wheels, paired with a welded floor stand that includes a rack to store the anvils close at hand.

The fully welded frame adds rigidity so the wheel tracks consistently pass after pass. A bearing-supported 8 inch by 2 inch upper wheel rolls smoothly against the lower anvil, and the 27.95 inch throat depth leaves room to work large panels. The kit includes six radiused anvils in 2, 3, 4, 6, 8 and 12 inch profiles plus one flat anvil, so you can match the curve you need.

The wheel forms up to 18 gauge steel and 16 gauge aluminum, which covers most automotive and general fabrication panels. A blue powder-coated finish protects the frame, and the wheel and anvil sit perpendicular to the frame for conventional side access. Forming your own panels lets you restore original body sections instead of sourcing costly replacements.

What's Included:

• Full-size English wheel head

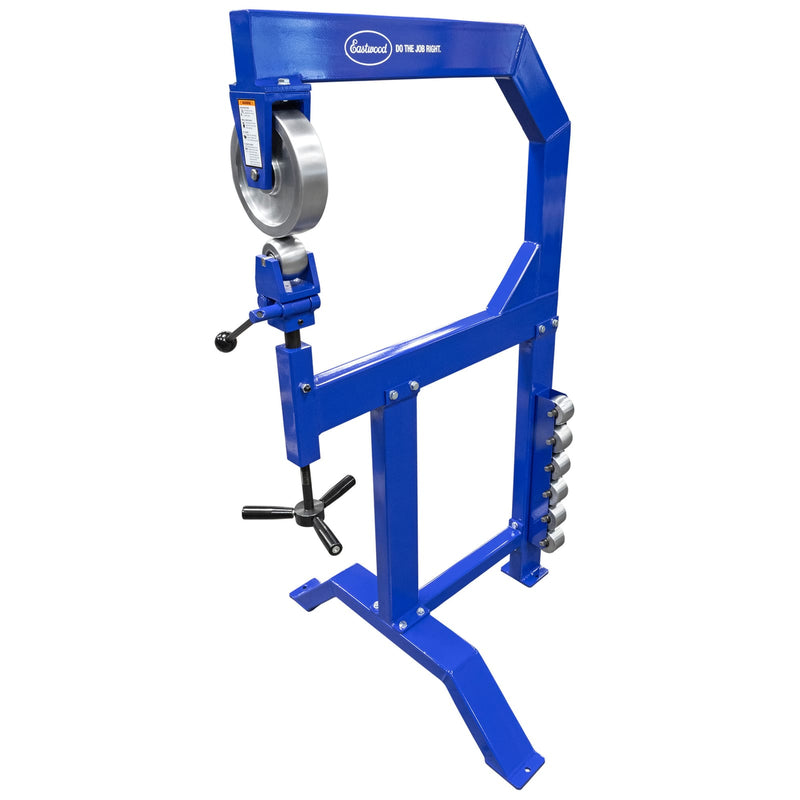

• Welded floor stand with anvil storage rack
• Bearing-supported 8 inch by 2 inch upper wheel
• Six radiused lower anvils (2", 3", 4", 6", 8", 12")
• One flat lower anvil

Specifications

• Upper wheel diameter: 8.00" (203mm)
• Wheel width: 2"
• Anvil diameter: 3.25" (82mm)
• Throat depth: 27.95" (710mm)
• Material capacity: 18 gauge steel, 16 gauge aluminum
• Maximum panel width from center: 55.9" (1420mm)
• Included anvils: Six radiused (2", 3", 4", 6", 8", 12") plus one flat
• Frame and stand: Welded rectangular tube steel
• Wheel and anvil material: #45 steel, mirror polished, 40 to 45 HRC
• Finish: Blue powdercoat
• Overall dimensions: 34.25" W x 36.00" D x 60.00" H
• Assembled weight: 172 lbs
