Eastwood Elite Mini English Wheel

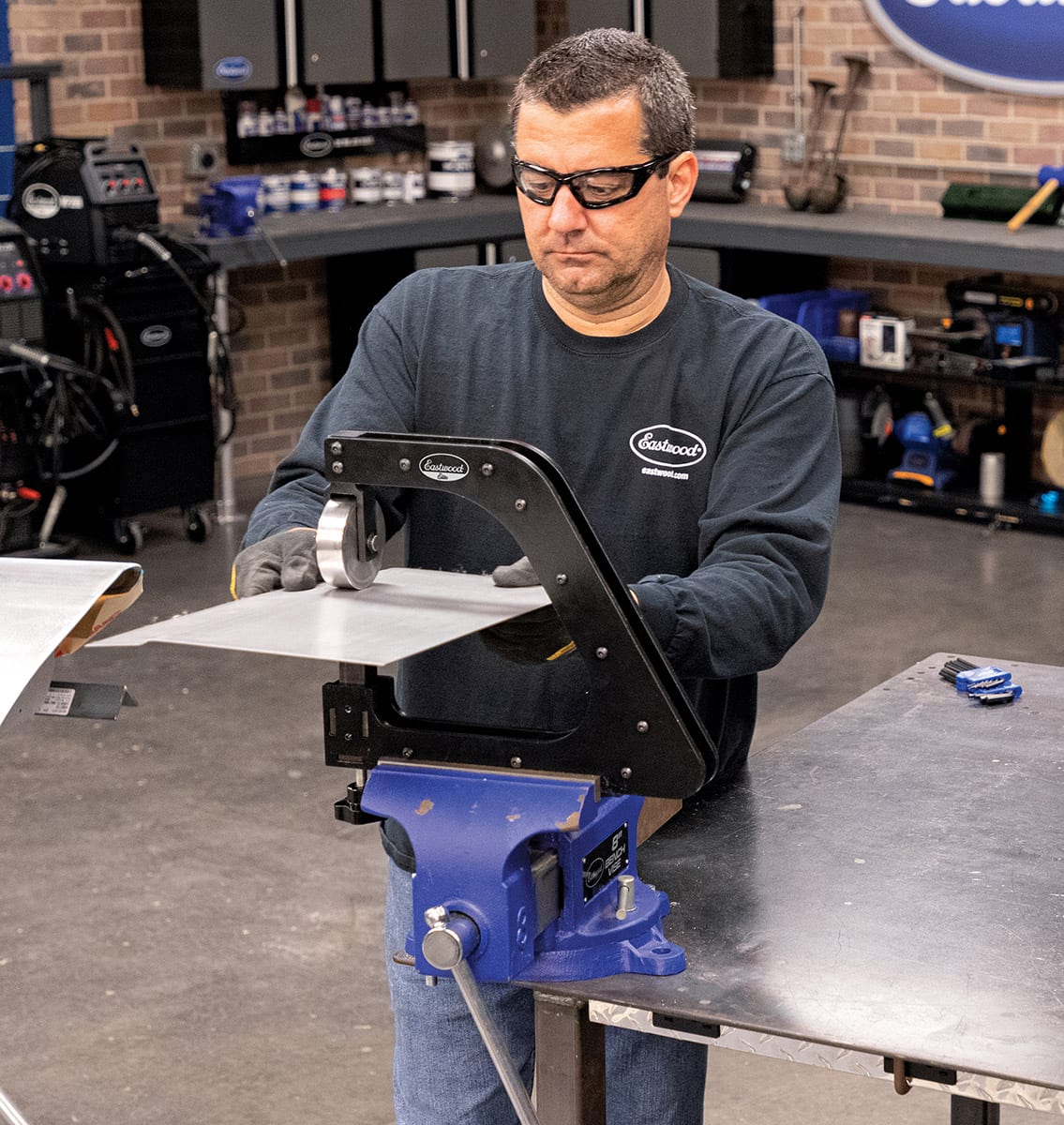

The Eastwood Elite Mini English Wheel makes shaping compound curves in sheet metal easier, whether you are learning the tool or need a space-saving unit for small projects. It packs the function of a full-size wheel into a compact vise-mounted package.

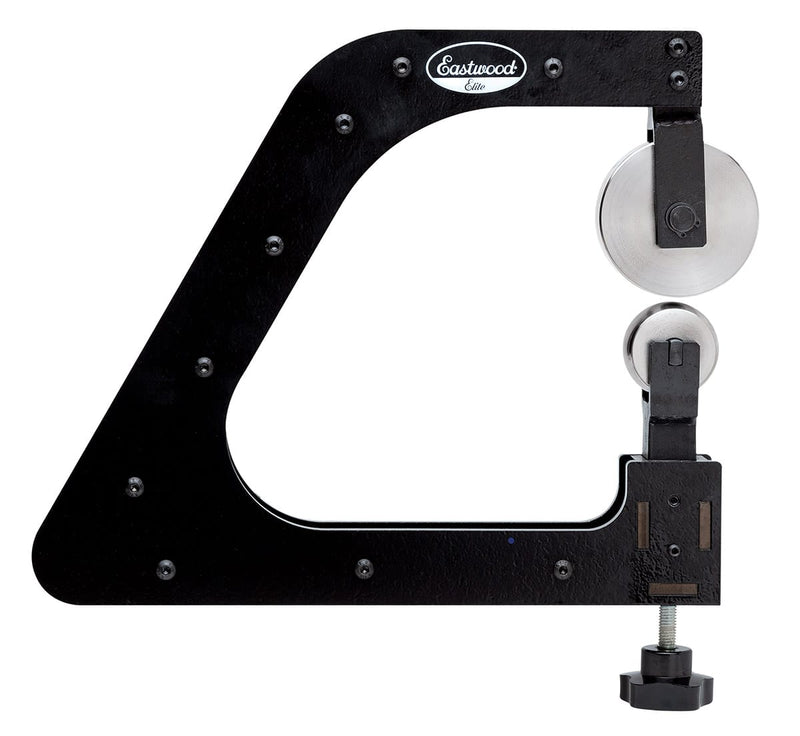

As a smaller version of the classic English wheel, it lets you form intricate patch panels that may be too small for a larger wheel or do not call for the expense of one. The 7.5 inch throat depth forms a panel up to 15 inches wide, and up to 20 inches on an angular plane. The wheels and anvils rotate 90 degrees to give unlimited throat depth in that direction for larger work.

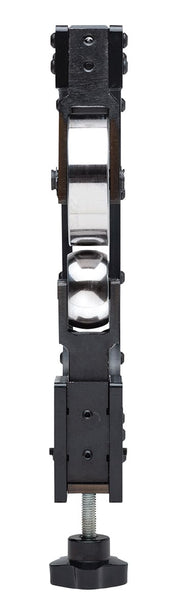

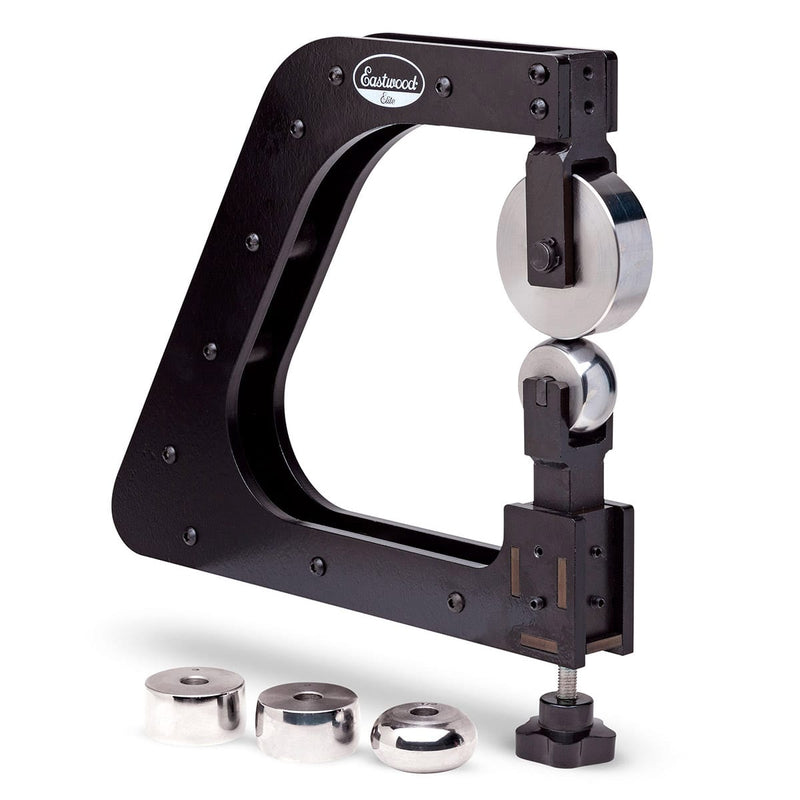

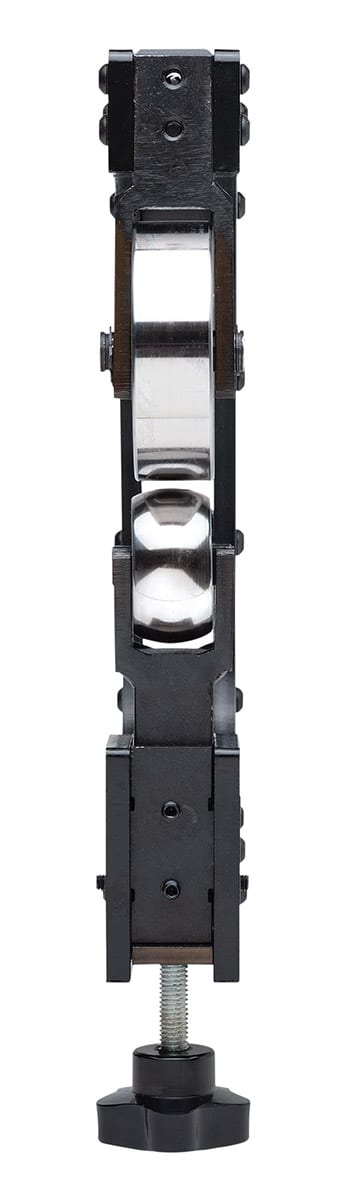

The kit includes a 3.19 inch upper wheel and four lower anvils in 1/2, 1, 2 and 3 inch radius profiles, with a micro-adjustable anvil for fine control. The wheel forms up to 18 gauge steel and 16 gauge aluminum, and the wheels are made of #45 steel with an HRC18 hardness rating. A vise-mount design makes it easy to set up and store.
What's Included:
- Elite Mini English wheel frame
- 3.19 inch upper wheel
- Four lower anvils (1/2", 1", 2", 3" radius)
- Micro-adjustable anvil holder
- Vise-mount base
Specifications
- Throat depth: 7.5"
- Panel width: 15" (up to 20" on angular plane)
- Upper wheel: 3.19"
- Lower anvils: Four (1/2", 1", 2", 3" radius)
- Anvil adjustment: Micro-adjustable
- Rotation: Wheels and anvils rotate 90 degrees
- Material capacity, steel: Up to 18 gauge
- Material capacity, aluminum: Up to 16 gauge
- Wheel material: #45 steel
- Wheel hardness: HRC18
- Mounting: Vise-mount
