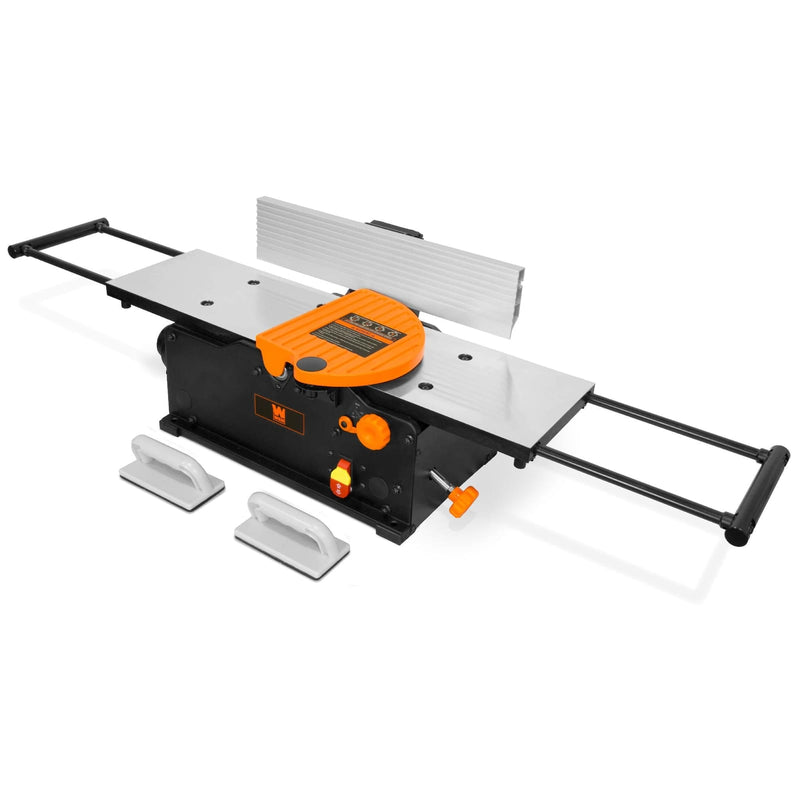

WEN JT833H 10-Amp 8-Inch Spiral Benchtop Jointer with Extendable Table

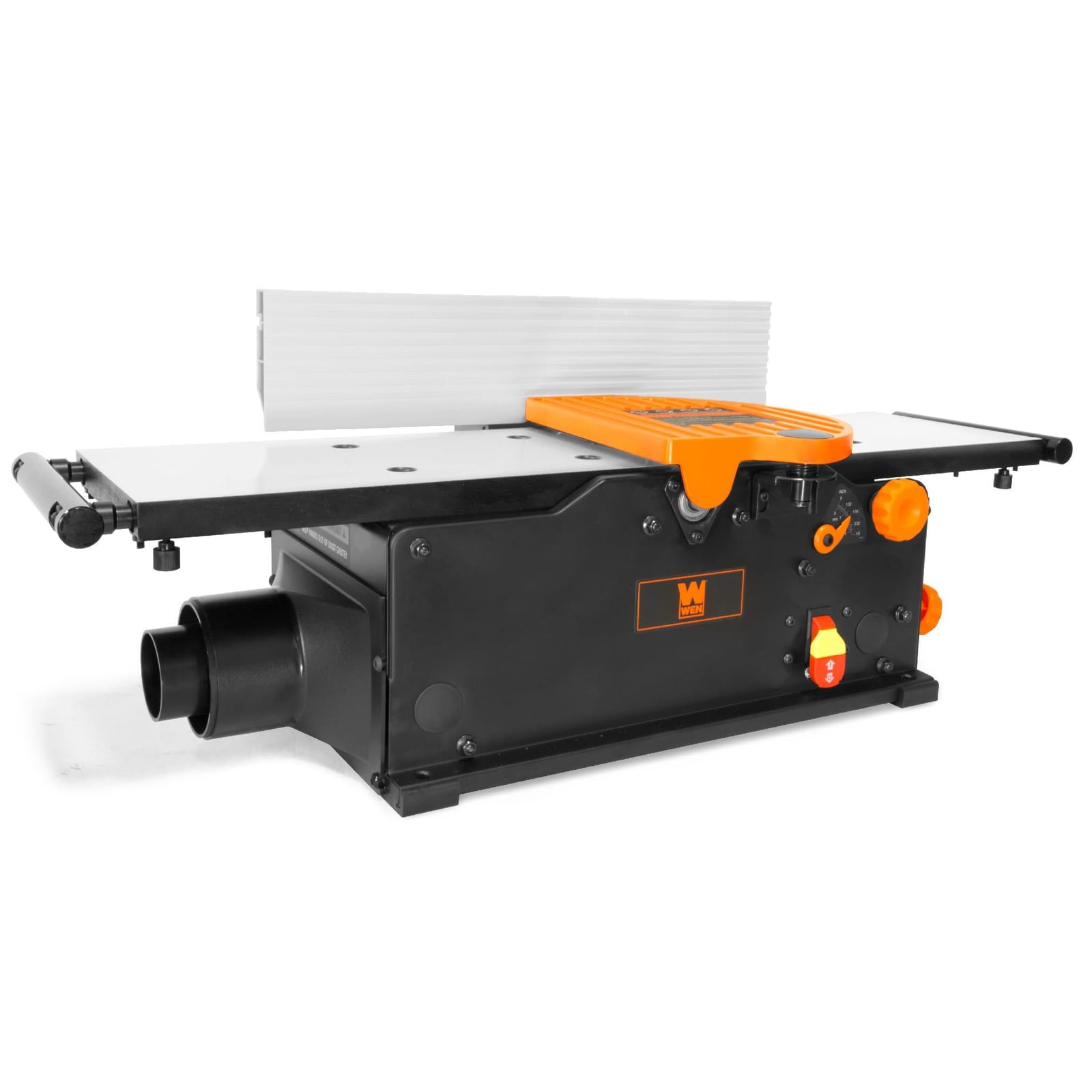

The WEN JT833H is an 8-inch spiral benchtop jointer that flattens faces and squares edges on boards before assembly or finishing. Its spiral cutterhead holds 16 staggered high-speed steel blades that cut the wood in small increments for a fine finish on hard and soft species. A 10-amp motor turns the cutterhead at up to 12,000 rotations per minute.

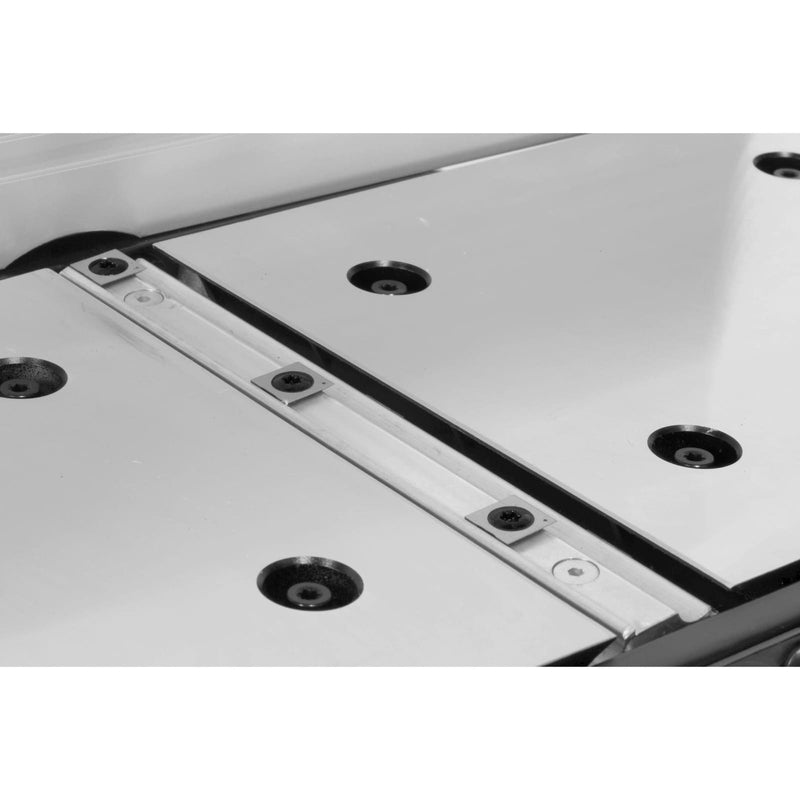

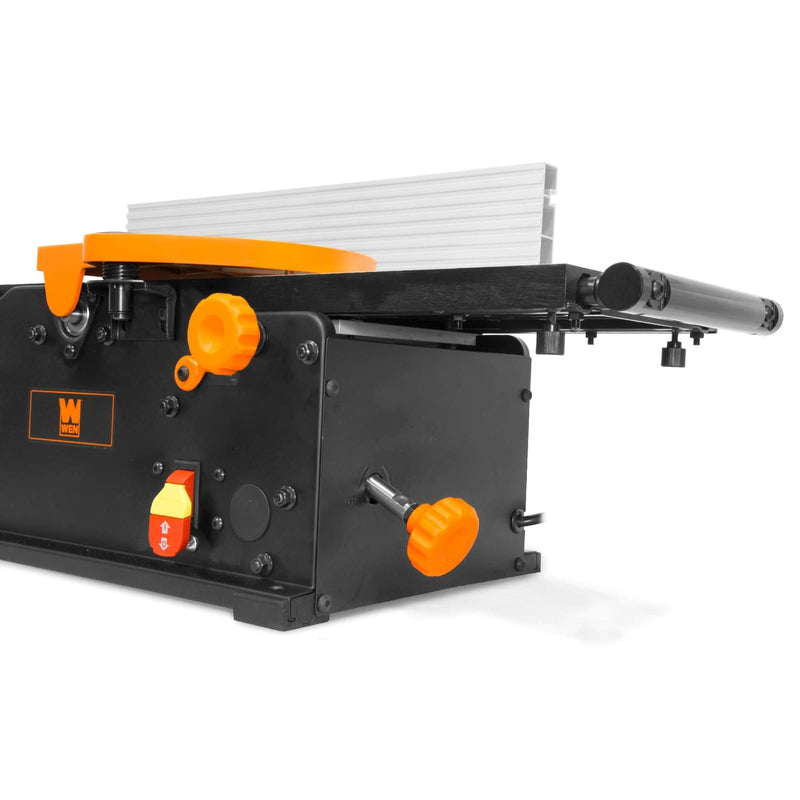

The table measures 33 by 8 inches, and support arms extend the work surface up to 51 inches to steady longer stock. The infeed table removes 0 to 1/8 inch of material per pass, and an onboard depth-of-cut scale keeps each setting repeatable.

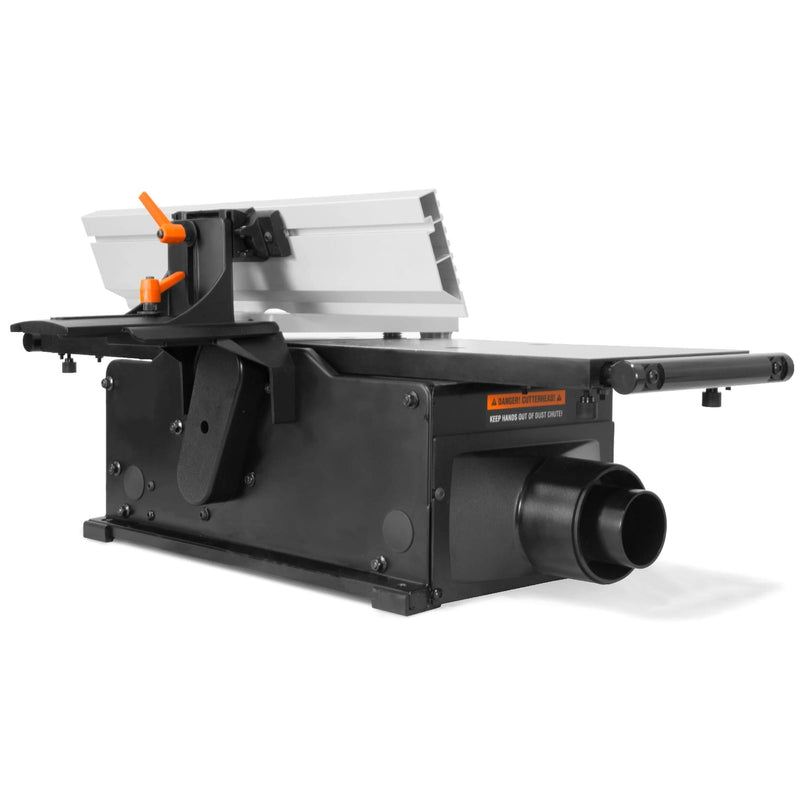

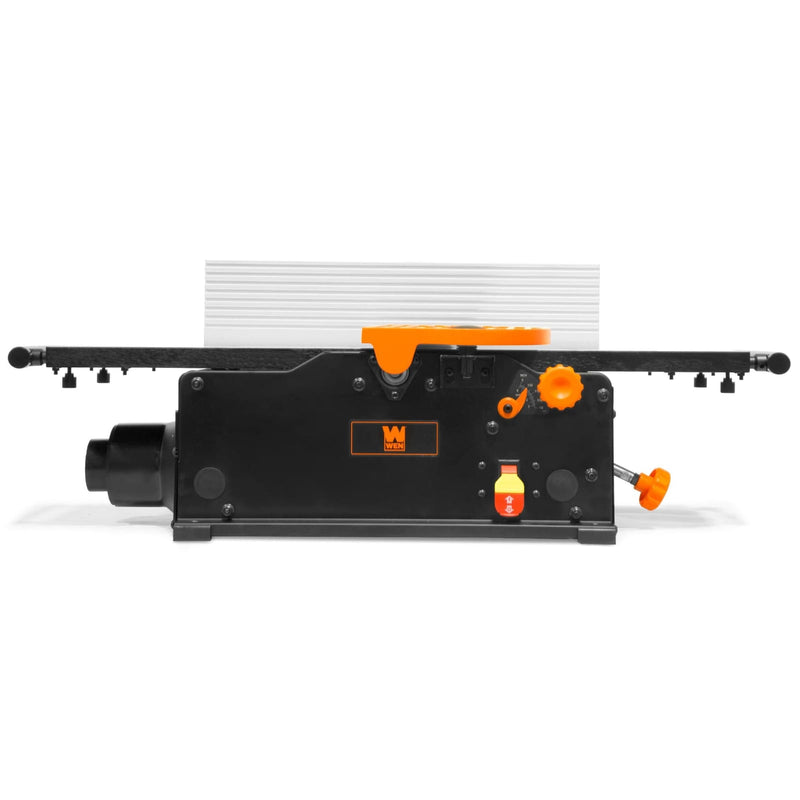

The 19-3/4 by 4-1/4-inch fence bevels up to 45 degrees for angled cuts along a board face. A spring-loaded blade guard covers the cutterhead until a workpiece passes through, and two push blocks are included for safer feeding. A 2-1/2-inch and a 4-inch dust port connect to shop collection to clear chips.

What's Included:

• WEN JT833H 8-inch spiral benchtop jointer
• Infeed and outfeed table with extendable support arms
• Adjustable bevel fence
• Two push blocks
• 2-1/2-inch and 4-inch dust ports
• Spring-loaded cutterhead guard
• Onboard depth-of-cut scale
• Two-year manufacturer coverage

Specifications

• Model: JT833H
• Cutterhead: Spiral with 16 HSS blades
• Cutting width: 8 inches
• Motor: 10 amps
• Cutterhead speed: Up to 12,000 RPM
• Table size: 33 by 8 inches
• Extended support length: Up to 51 inches
• Maximum depth of cut: 1/8 inch per pass
• Fence size: 19-3/4 by 4-1/4 inches
• Fence bevel range: Up to 45 degrees
• Dust ports: 2-1/2 inch and 4 inch
• Coverage: Two-year manufacturer
