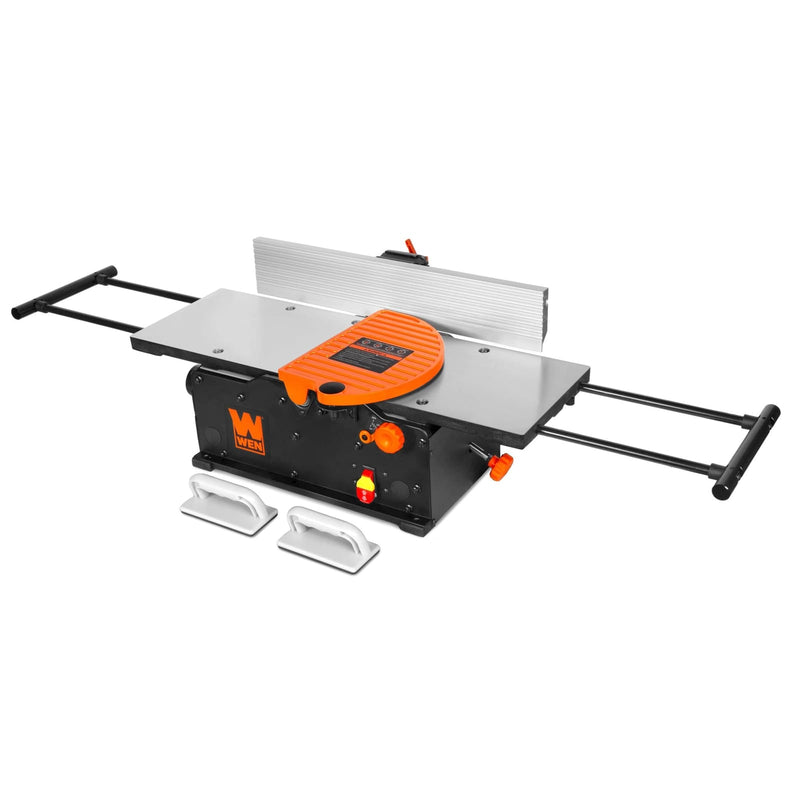

WEN JT1020H 12-Amp 10-Inch Spiral Benchtop Jointer with Extendable Cast-Iron Table

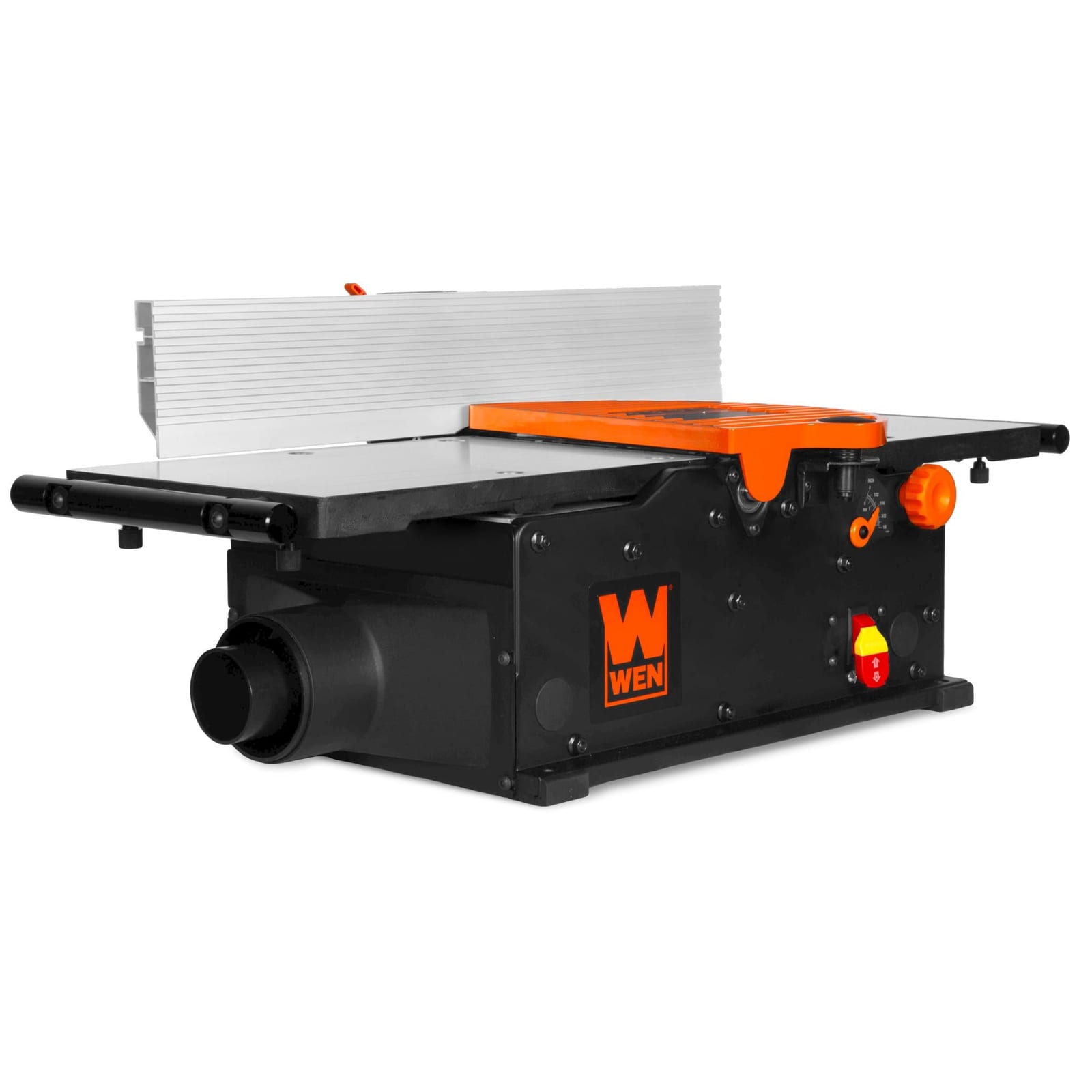

The WEN JT1020H is a 10-inch spiral benchtop jointer that flattens faces and squares edges on rough lumber. Its spiral cutterhead holds 20 staggered high-speed steel blades that slice the wood in small increments for a fine finish on hard and soft woods alike. A 12-amp motor spins the cutterhead at up to 11,000 rotations per minute.

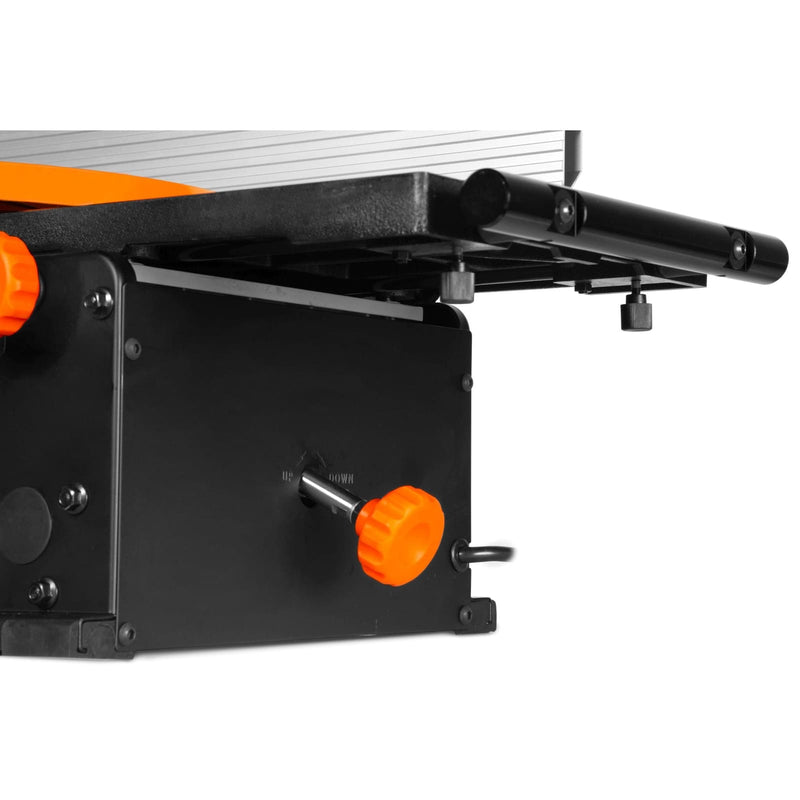

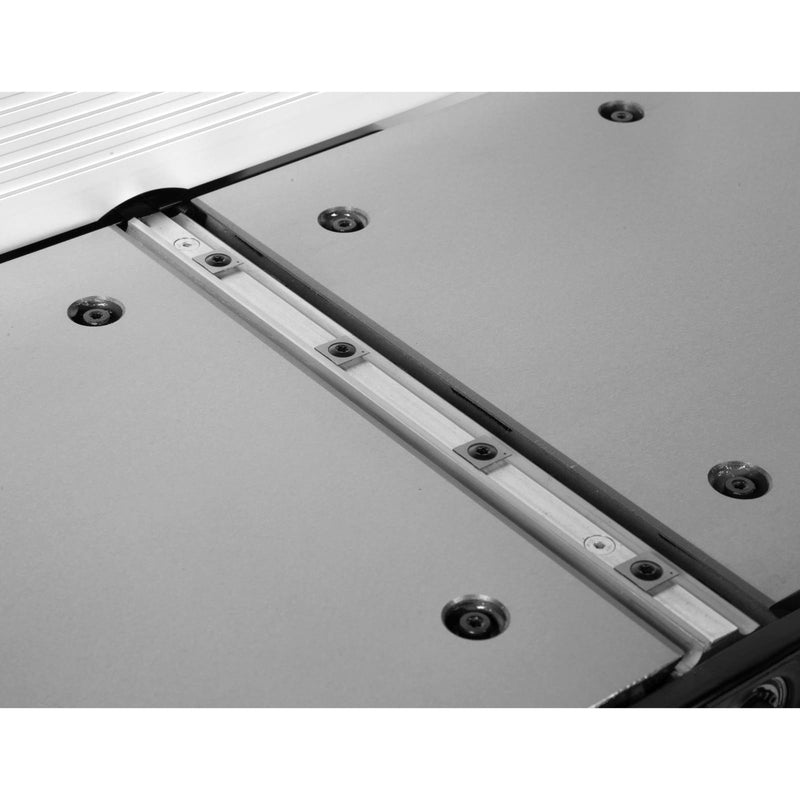

The precision-ground cast iron table measures 34 by 10-3/16 inches, and fold-out support arms extend the surface up to 54 inches to steady longer workpieces. The infeed table removes 0 to 1/8 inch of material per pass, and an onboard depth-of-cut scale makes each setting repeatable.

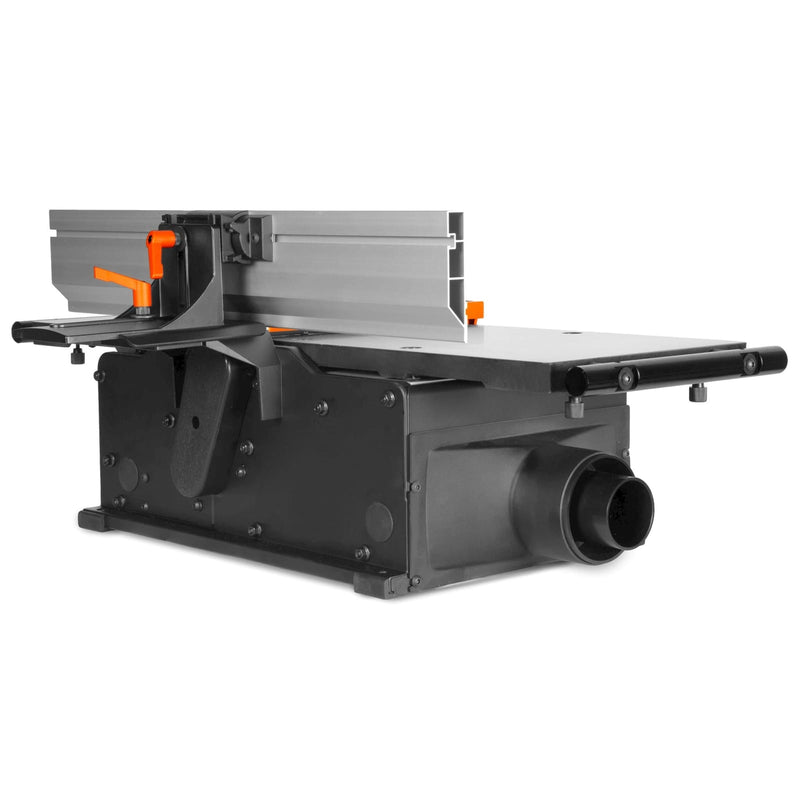

The 24 by 4-1/4-inch fence bevels up to 45 degrees for angled cuts across a board face. A spring-loaded blade guard covers the cutterhead until stock passes through, and two push blocks are included for safer feeding. A 2-1/2-inch and a 4-inch dust port tie into shop collection to clear chips.
What's Included:
- WEN JT1020H 10-inch spiral benchtop jointer
- Cast iron infeed and outfeed table with extendable support arms
- Adjustable bevel fence
- Two push blocks
- 2-1/2-inch and 4-inch dust ports
- Spring-loaded cutterhead guard
- Onboard depth-of-cut scale
- Two-year manufacturer coverage
Specifications
- Model: JT1020H
- Cutterhead: Spiral with 20 HSS blades
- Cutting width: 10 inches
- Motor: 12 amps
- Cutterhead speed: Up to 11,000 RPM
- Table size: 34 by 10-3/16 inches
- Extended support length: Up to 54 inches
- Maximum depth of cut: 1/8 inch per pass
- Fence size: 24 by 4-1/4 inches
- Fence bevel range: Up to 45 degrees
- Dust ports: 2-1/2 inch and 4 inch
- Coverage: Two-year manufacturer
